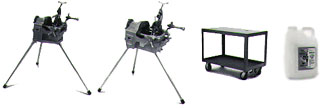

6890 1/4"-1 1/2" MAXIMUM PIPE RANGE

PART NO.	DIES
60200 60201 60202 60346 60347 60348 60340 60341 60342 60343 60344 60345 60349	1/4"-3/8"NPT(60120 Die Head) 1/2"-3/4"NPT(60120 Die Head) 1"-1 1/2" NPT (60120 Die Head). 5/16" UNC Bolt (60125 Die Head) 3/8"UNC Bolt (60125 Die Head) 7/16"UNC Bolt (60125 Die Head) 1/2" UNC Bolt (60125 Die Head) 5/8"UNC Bolt (60125 Die Head) 3/4"UNC Bolt (60125 Die Head) 7/8" UNC Bolt (60125 Die Head) l"UNC Bolt (60125 Die Head) 1 1/8"& 1 1/4"UNC Bolt (60125 Die Head) 1 1/2" UNC Bolt (60125 Die Head)
DIE HEADS
60120 60125	11/4"-1 1/2" NPT/Manual Opening 15/16--1 1/2" UNC BolVManual Opening
SPARE PARTS
60324 60305	Cutter Wheel Chuck Jaw Insert Set

6090 1/4"-2" MAXIMUM PIPE RANGE

PART NO.	DIES
60200 60201* 60209* 60233+ 60238+ 60353 60354 60338 60339 60230 60231 60232 60346 60347 60348 60340 60341 60342 60343 60344 60345 60349 60352	1/4"-3/8"NPT(60115 Die Head) 1/2"-3/4"NPT(60118 Die Head) 1"-2" NPT (60118 Die Head) 1/2"-3/4"S.S.(60118 Die Head) 1"-2"S.S.(60118 Die Head) 3/4" Beveling (60117 Die Head) 1"-2" Beveling (60117 Die Head) 3/4" Grooving (60117 Die Head) 1"-2" Grooving (60117 Die Head) 1/2"-3/4" Conduit (60116 Die Head) 1"-1 1/4" Conduit (60116 Die Head) 1 1/2"-2" Conduit (60116 Die Head) 5/16"UNC Bolt (60114 Die Head) 3/8"UNC Bolt (60114 Die Head) 7/16"UNC Bolt (60114 Die Head) 1/2"UNC Bolt (60114 Die Head) 5/8"UNC Bolt (60114 Die Head) 3/4"UNC Bolt (60114 Die Head) 7/8"UNC Bolt (60114 Die Head) 1"UNC Bolt (60114 Die Head) 1 1/8 & 1 1/4"UNC Bolt (60114 Die Head) 1 1/2" UNC Bolt (60114 Die Head) 2" UNC Bolt (60114 Die Head)
DIE HEADS
60115 60118* 60114 60117 60116	1/4"- 2" NPT/Manual Opening 1/2"- 2" NPT/Automatic Opening 5/16"- 2" UNC BolVManual Opening 3/4"- 2" Beveling & Grooving Conduit
SPARE PARTS AND CART
60324* 60318 60501 60112 60113	Cutter Wheel Chuck Jaw insert Set Threader Cart 1/2"- 3/4" NPT/Automatic Opening/Notch type  1"- 2" NPT/Automatic Opening,/Notch type

* Included with basic machine +Special oil required for 316 S.S. pipe

WHEELER-REX SUPER 10 R THREAD & CUTTING FLUID

High grade fluid recommended for use with Wheeler-Rex threaders and for all steel machining where cutting oil is required
60101 1 Gal.
