Standard Dimensions and Weights for
TYTON JOINT® Pipe

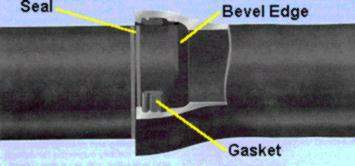

TYTON JOINT pipe is highly recommended wherever there is a need for an easily assembled tight joint for ductile iron pressure pipe. It is particularly well suited for water or other liquid service. The TYTON JOINT is listed by Underwriters Laboratories, Inc.

TYTON JOINT® is a registered trademark of U.S. Pipe and Foundry Co.

Size	Pipe Barrel				Bell			Laying Length
	Press. Class psi	Thick Class	Thick in.	O.D. in.	A Bell O.D. in.	B Bell Depth in.	X Defl. Angle deg.	Wt. per Lgth. lbs.	Y Max defl. in.
6		50	0.25	6.90	8.66	3.38	5	336	21
		51	0.28	6.90	8.66	3.38	5	372	21
		52	0.31	6.90	8.66	3.38	5	409	21
		53	0.34	6.90	8.66	3.38	5	445	21
		54	0.37	6.90	8.66	3.38	5	481	21
		55	0.40	6.90	8.66	3.38	5	516	21
		56	0.43	6.90	8.66	3.38	5	551	21
	350		0.25	6.90	8.66	3.38	5	336	21
8		50	0.27	9.05	10.82	3.69	5	477	21
		51	0.30	9.05	10.82	3.69	5	526	21
		52	0.33	9.05	10.82	3.69	5	574	21
		53	0.36	9.05	10.82	3.69	5	622	21
		54	0.39	9.05	10.82	3.69	5	670	21
		55	0.42	9.05	10.82	3.69	5	718	21
		56	0.45	9.05	10.82	3.69	5	765	21
	350		0.25	9.05	10.82	3.69	5	444	21
10		50	0.29	11.10	12.91	3.75	5	630	21
		51	0.32	11.10	12.91	3.75	5	690	21
		52	0.35	11.10	12.91	3.75	5	750	21
		53	0.38	11.10	12.91	3.75	5	810	21
		54	0.41	11.10	12.91	3.75	5	870	21
		55	0.44	11.10	12.91	3.75	5	929	21
		56	0.47	11.10	12.91	3.75	5	988	21
	350		0.26	11.10	12.91	3.75	5	569	21
12		50	0.31	13.20	15.05	3.75	5	801	21
		51	0.34	13.20	15.05	3.75	5	874	21
		52	0.37	13.20	15.05	3.75	5	946	21
		53	0.40	13.20	15.05	3.75	5	1017	21
		54	0.43	13.20	15.05	3.75	5	1089	21
		55	0.46	13.20	15.05	3.75	5	1160	21
		56	0.49	13.20	15.05	3.75	5	1230	21
	350		0.28	13.20	15.05	3.75	5	729	21
14		50	0.33	15.30	17.62	5.00	5	1004	21
		51	0.36	15.30	17.62	5.00	5	1088	21
		52	0.39	15.30	17.62	5.00	5	1172	21
		53	0.42	15.30	17.62	5.00	5	1256	21
		54	0.45	15.30	17.62	5.00	5	1339	21
		55	0.49	15.30	17.62	5.00	5	1422	21
		56	0.52	15.30	17.62	5.00	5	1504	21
	250		0.28	15.30	17.62	5.00	5	863	21
	300		0.30	15.30	17.62	5.00	5	919	21
	350		0.31	15.30	17.62	5.00	5	947	21
16		50	0.34	17.40	19.74	5.00	5	1177	21
		51	0.37	17.40	19.74	5.00	5	1273	21
		52	0.40	17.40	19.74	5.00	5	1369	21
		53	0.43	17.40	19.74	5.00	5	1465	21
		54	0.46	17.40	19.74	5.00	5	1560	21
		55	0.49	17.40	19.74	5.00	5	1655	21
		56	0.52	17.40	19.74	5.00	5	1750	21
	250		0.30	17.40	19.74	5.00	5	1048	21
	300		0.32	17.40	19.74	5.00	5	1113	21
	350		0.34	17.40	19.74	5.00	5	1177	21
18		50	0.35	19.50	21.86	5.00	5	1356	21
		51	0.38	19.50	21.86	5.00	5	1464	21
		52	0.41	19.50	21.86	5.00	5	1572	21
		53	0.44	19.50	21.86	5.00	5	1679	21
		54	0.47	19.50	21.86	5.00	5	1787	21
		55	0.50	19.50	21.86	5.00	5	1894	21
		56	0.53	19.50	21.86	5.00	5	2000	21
	250		0.31	19.50	21.86	5.00	5	1211	21
	300		0.34	19.50	21.86	5.00	5	1319	21
	350		0.36	19.50	21.86	5.00	5	1392	21
20		50	0.36	21.60	23.98	5.00	5	1542	21
		51	0.39	21.60	23.98	5.00	5	1662	21
		52	0.42	21.60	23.98	5.00	5	1782	21
		53	0.45	21.60	23.98	5.00	5	1902	21
		54	0.48	21.60	23.98	5.00	5	2021	21
		55	0.51	21.60	23.98	5.00	5	2140	21
		56	0.54	21.60	23.98	5.00	5	2259	21
	250		0.33	21.60	23.98	5.00	5	1422	21
	300		0.36	21.60	23.98	5.00	5	1542	21
	350		0.38	21.60	23.98	5.00	5	1622	21
24		50	0.38	25.80	28.16	5.00	5	1953	21
		51	0.41	25.80	28.16	5.00	5	2097	21
		52	0.44	25.80	28.16	5.00	5	2241	21
		53	0.47	25.80	28.16	5.00	5	2385	21
		54	0.50	25.80	28.16	5.00	5	2528	21
		55	0.53	25.80	28.16	5.00	5	2671	21
		56	0.56	25.80	28.16	5.00	5	2814	21
	200		0.33	25.80	28.16	5.00	5	1712	21
	250		0.37	25.80	28.16	5.00	5	1905	21
	300		0.40	25.80	28.16	5.00	5	2049	21
	350		0.43	25.80	28.16	5.00	5	2193	21
