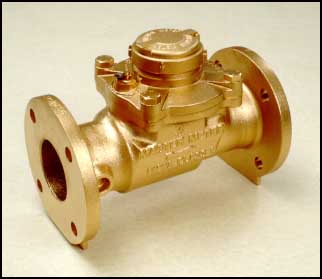

2", 3" and 4" MMT-S

MMT Turbine Meter with Integral Strainer
Scroll down to see our many other meters and link to www.water-meters.com

AWWA Standard

Meets or exceeds the performance required by AWWA Standard C701, most recent revision, for Class II Turbine Meters.

Description

Single body houses AWWA Class II Turbine Meter and strainer, simplifying installation.

Main Case

Constructed of waterworks bronze, 81% copper composition, with flanged ends. Bronze register retaining ring and lid are standard. A downstream test plug is provided to allow field testing without removal of the assembly from the line.

Strainer

Strainer housing is integral to the main case, and houses an expanded stainless steel strainer element. Strainer screens debris from the line that could cause measuring element damage and conditions the flow velocity profile to improve meter accuracy and measuring element life.

Measuring Chamber

Meter chamber assembly and turbine are constructed of durable engineering plastics for extended service life.

Magnetic Drive

A reliable, direct magnetic drive provides linkage between measurement element and register. No intermediate gearing is required; no gearing is exposed to water.

Register

Standard direct read, DIALOG^® Meter Reading System and Electrical Output registers are available. A six-wheel odometer is standard. Registration is available in gallons or cubic feet.

Register Sealing

Direct read and DIALOG^® System registers are permanently sealed, with a tempered glass lens, stainless steel base and wrap-around gasket to prevent intrusion of dirt or moisture.

Test Circle

Large center sweep hand with 100 clearly indicated graduations per minimum registration unit, with each tenth marked.

Low Flow Detector

Center-mounted indicator with high sensitivity resulting from direct one to one linkage to the measuring element.

Meter Operating Characteristics & Dimensions
Scroll down to see our many other meters and link to www.water-meters.com

	Meter Size
Characteristic/Dimension	2"	3"	4"
Operating Range (±1 1/2%) [gpm]	4-275	5-500	9-1000
Continuous Operating Range [gpm]	4 - 200	5 - 400	9 - 750
Low Flow (95%) [gpm]	3	4	8
Maximum Intermittent Flow [gpm]	275	500	1000
Maximum Working Pressure (psi)	175	175	175
Maximum Working Temperature (°F)	120	120	120
Length (inches)	13	19	23
Height (inches)	7	9-1/2	10
Height, bottom to center line (inches)	2-1/2	3-3/4	4-1/2
Width (inches)	5-1/4	7-1/2	9
Weight (pounds)	26.5	56.0	75.0
Register Capacity (millions) - U.S. Gal.	100	100	1000
Register Capacity (millions) - Cu. Ft.	10	10	100
Maincase Material	Bronze	Bronze	Bronze
Flanges	Elliptical	Round	Round

Click this Link to Our Main Sites for

water-meters.com watermeters.com watermeters.net

AWWA & ISO 4064 Meters All Major Brands Carried

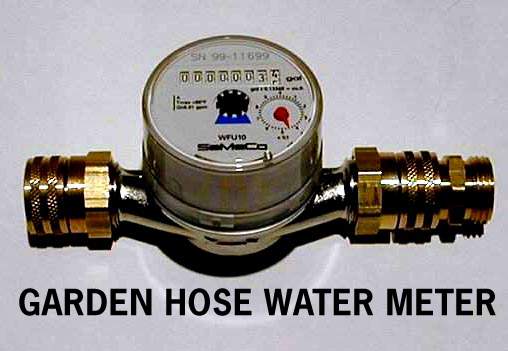

Garden Hose Bibb Water Meters

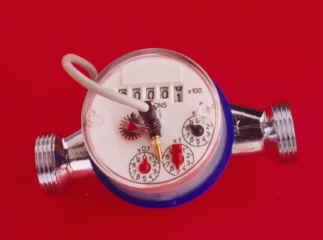

Appliance Water Meters (3/8" & 1/4")
