DLJ Turbine Water Meters from
watermeters.com and turbinemeters.com

DLJ 2" - 20" EPOXY COATED CAST IRON TURBINE METER

Application: Measuring the volume of cold (hot) water passing through the pipeline. This is a horizontal Woltman type meter designed for installation where occasional low and moderate to high sustained flows are demanded. Often referred to as an industrial turbine meter, the DLJ meters are ideal for industrial, agricultural and utility applications.

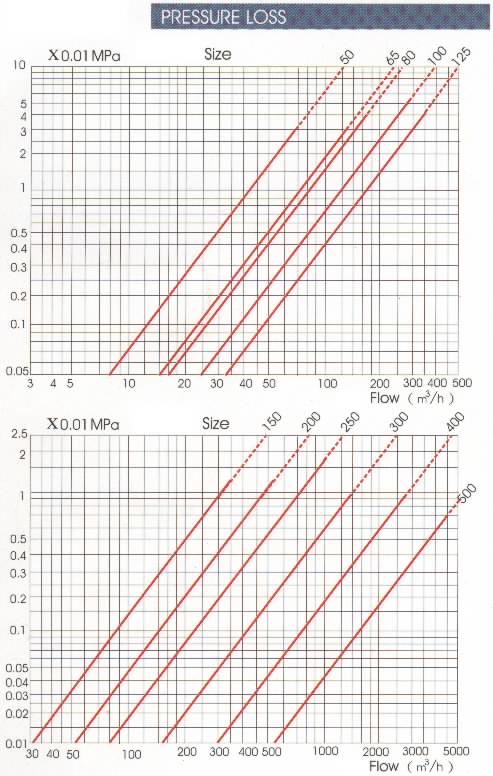

Features:  Epoxy coated cast iron body, removable element structure, easy installation and maintenance, copper sealed register, easy to read odometer type dial, interchangeable spare parts, magnetic drive, sensitive action, low pressure (head) loss, and a long working life. The meter is epoxy coated internally and externally to give it a high resistance to corrosive elements. Accuracy within 1-1/2% in the range between the minimum and maximum flow on the chart below.

Working conditions: Water temperature operating range to 120 degrees F, Hot Model to 212 degrees

Water pressure: working 175 psi, higher pressure meters also offered, contact us

Type	Size inch	A Class B	QS Max. Flow	QP Nominal Flow	QT Transitional Flow	qmin Min.   Flow	Min. Reading	Max. Reading
			m 3/h		m 3/h		m3
DLJ200T	2	A	30	15	4.5	1.2	0.01	999999
		B			3.0	0.45
DLJ250T	2.5	A	50	25	7.5	2.0	0.01	999999
		B			5.0	0.75
DLJ300T	3	A	80	40	12	3.2	0.01	999999
		B			8.0	1.2
DLJ400T	4	A	120	60	18	4.8	0.01	999999
		B			12	1.8
DLJ500T	5	A	200	100	30	8.0	0.01	999999
		B			20	3.0
DLJ600T	6	A	300	150	45	12	0.1	9999999
		B			30	4.5
DLJ800T	8	A	500	250	75	20	0.1	9999999
		B			50	7.5
DLJ1000T	10	A	800	400	120	32	1	99999999
		B			80	12
DLJ1200T	12	A	1200	600	180	48	1	99999999
		B			120	18
DLJ1600T	16	A	2000	1000	300	80	1	99999999
		B			200	30
DLJ2000T	20	A	3000	1500	450	120	1	99999999
		B			300	45

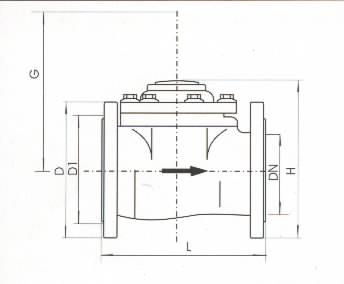

Dimensions and weight:

Model  Number	Size  Inches	L Length	H Height	G Height	Connecting Flange			Weight kg
	mm				Outer Dia mm	Flange OD Inches	ConnectingBolt (pcs)
DLJ200T	2	200	232	360	165	6	4 X M16	12
DLJ250T	2.5	200	242	360	185	7	4 X M16	13
DLJ300T	3	225	252	360	200	7.5	8 X M16	16
DLJ400T	4	250	262	360	220	9	8 X M16	18
DLJ500T	5	250	275	360	250	10	8 X M16	20
DLJ600T	6	300	325	420	280	11	8 X M20	42
DLJ800T	8	350	352	420	340	13.5	8 X M20	64
DLJ1000T	10	450	470	660	395	16	12 X M20	94
DLJ1200T	12	500	492	660	445	19	12 X M20	114
DLJ1600T	16	608	631	750	515	23.5	16 X M20	199
DLJ2000T	20	808	740	840	670	27.5	20 X M24	340

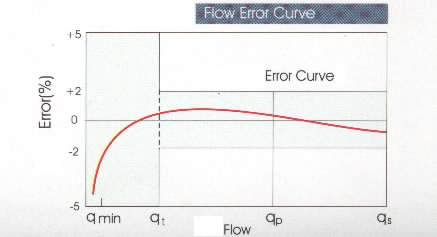

Maximum permissible error:
1. in the lower zone from qmin inclusive up to but excluding qt is ±5%
2. in the upper zone from qt inclusive up to and including qs is ±2%
(±30% for hot water meter)
