5/8" to 1" DLJ Cold Water Multi-jet Meters

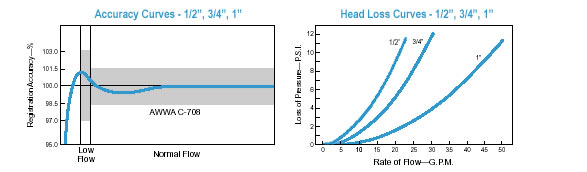

Operating Characteristics & Dimensions

  watermeters.com  the first and still the best online source for water meters
  These and all of our meters are available with contact switches on the
   register for remote registers, batch controllers and data analysis
  The odometer type dial reads up to 10 million gallons
  The sweep hand indicates down to 1/10 of a gallon
  There is a low flow (trickle) leak indicator on the dial to indicate any flow at all
                Also available in Hot Water Models to 194 degrees F

DLJ50C 5/8 x 1/2 Meter With 1 Gallon Per Contact Register DLJ50 5/8x1/2 Meter
DLJ7575 3/4" x 3/4" DLJ100 1 Water Meter with 1 NPT Couplings

  We stock both US Gallons and Cubic Meter Registrations

Meter Size
Characteristics/Dimensions
DLJ 50 5/8" x 1/2"
DLJ 75
5/8" x 3/4"
DLJ 7575 3/4" x 3/4"
DLJ100 - 1"
Flow Rating (gpm)
20
20
30
50
Continuous Flow (gpm)
15
15
25
30
Normal Flow Range (gpm)
1 - 20
1 - 20
2 - 30
3 - 50
Low Flow (gpm)
1/4
1/4
1/4
1/2
Maximum Working Pressure (psi)
150
150
150
150
Maximum Working Temperature (°F)
122
122
122
122
Length (L)
7 1/2"
7 1/2"
9"
10 3/4"
Height (standard register & lid) (H)
4 1/8"
4 1/8"
4 1/8"
3 7/8"
Width (B)
3 3/4"
3 3/4"
3 3/4"
4 1/8"
Weight (pounds)
4
4
5
5
