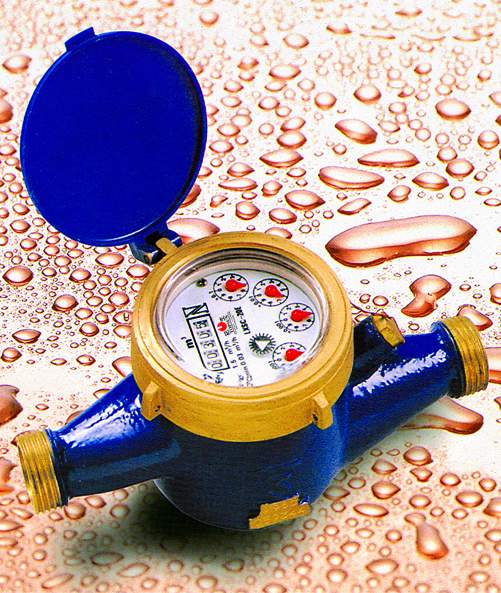

Application:  Measuring the volume of cold portable water passing through the pipeline

Features:  Epoxy Coated Bronze Body, Dry type, magnetic drive, numerical cylinder drum and pointer indication,  easy and long term clear reading, frost resistance, long working life,etc.

Working condition:  Water temperature:40 degree C , 120 degree F
Water pressure:1 MPa, 145 psi

Main technical data:




Type	Size mm	Class	qs Max. Flow	qp Nominal Flow	qt Transitional Flow	qmin Min. 　  　  　  Flow	Min. Reading	Max. Reading
			m 3/h		L/h		m3
LXSC-15E	15	A	3	1.5	150	60	0.0001	99999
		B			120	30
LXSC-20E	20	A	5	2.5	250	100	0.0001	99999
		B			200	50
LXSC-25E	25	A	7	3.5	350	140	0.0001	99999
		B			280	70
LXSC-32E	32	A	12	6.0	600	240	0.0001	99999
		B			480	120
LXSC-40E	40	A	20	10	1000	400	0.001	99999
		B			800	200
LXSC-50E	50	A	30	15	1500	600	0.001	99999

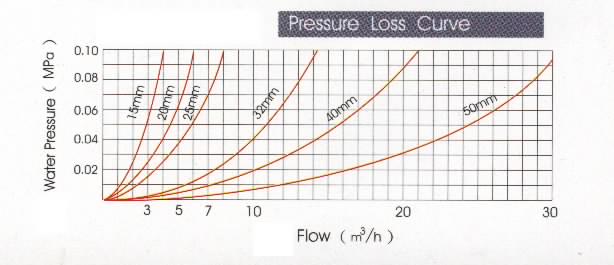

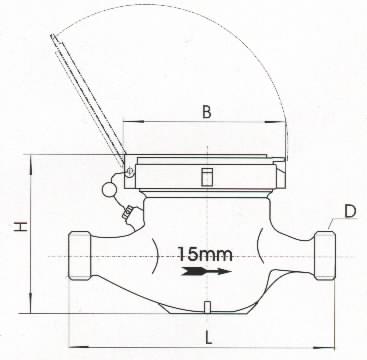

Dimensions and weight:




Type	Size	Length	Width	Height	Connecting Thread  D	Weight           kg
	m m
LXSC-15E	15	165	99	104	G 3/4B	1.5
LXSC-20E	20	190	99	106	G 1B	1.7
LXSC-25E	25	260/225	103	114	G 1 1/4B	2.6/2.4
LXSC-32E	32	260/230	104	117	G1 1/2B	2.8/2.7
LXSC-40E	40	300/245	124	147	G2B	5.1/4.8
LXSC-50E	50	300/280	125	172	G2 1/2B	-8.5/8.2
					Flange connect GB4216.4-84 D=?165 D1=?125	11.5/11

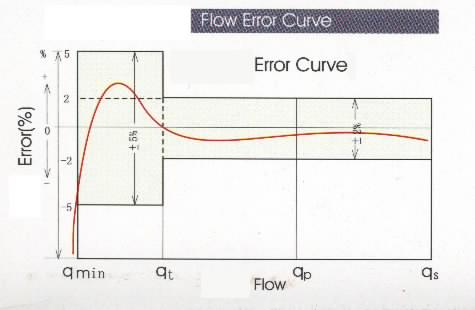

Maximum permissible error:
1. in the lower zone from qmin inclusive up to but excluding qt is ±5%
2. in the upper zone from qt inclusive up to and including qs is ±2%

NOTE:
  Technical data conform to International Standard ISO4064
