Water Meter
Couplings and Flanges
Illustrated Above and scroll down
Please Note: Threaded End Meters
Require Meter Couplings
The threads on the end of the
meter are non-tapered mechanical threads and compress a gasket, they are
not tapered pipe threads and will not directly accept a threaded fitting
or valve, couplings are avilable separately from us at wholesale prices.
Scroll down for meter couplings, flanges, valves etc. to properly install
your water meter
Installation Adapter Kits For
Water Meters are below, all parts may be ordered separately:
For 5/8 x 1/2" Meters: MM2C
KIT
To install on 1/2" Copper Line
without soldering
Consists of 1 set of
1/2" meter couplings, 2 - 1/2" brass ball valves and
2 - 1/2" Copper Compression
x MIPT Adapters
For 5/8 x 3/4"and 3/4" Meters:
MM3C KIT
To install on 3/4" Copper Line
without soldering
Consists of 1 set of
3/4" meter couplings, 2 - 3/4" brass ball valves and
2 - 3/4" Copper Compression
x MIPT Adapters
For 1" Meters: MM5C KIT
To install on 1" Copper Line
without soldering
Consists of 1 set of
1" meter couplings, 2 - 1" brass ball valves and
2 - 1" Copper Compression x
MIPT Adapters
For 1-1/2" Meters: MM6C KIT
To install on 1-1/2" Copper
Line without soldering
Consists of 1 set of
1-1/2" meter flanges, 2 - 1-1/2" ball valves, 2 Brass Close Nipples and
2 - 1-1/2" Copper Compression x MIPT Adapters
For 2" Meters: MM7C KIT
To install on 2" Copper Line
without soldering
Consists of 1 set of
2" meter flanges, 2 - 2" ball valves, 2 Brass Close Nipples and 2 - 2" Copper
Compression x MIPT Adapters
Components may be ordered separately.
Adapters are available in
solder type, compression type
for various pipes, reducing, increasing,
90 degree ell, check valve type,
etc. Just let us know your requirements
|
|
Meter
Couplings: Straight & 90 Degree |
Meter
Flange |
|
|
|
Brass
Ball Valves |
Brass
Gate Valves |
PVC Ball
Valves |
|
|
|
Brass
Check Valves |
Gate
Valves Cast Iron |
Brass
Wye Strainers |
|
|
|
|

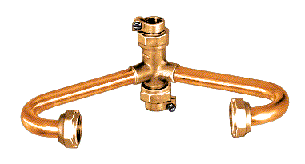

Meter
Setter |
Compression
Copper x Male |
Compression
Copper x Female |
Std
Meter Coupling |
